Welded Wire Mesh Machine Introduction

The welded wire mesh machine adopts fully automatic wire feeding technology and features low noise, high stability and ease of operation. It is suitable for welding wire meshes with a width ranging from 2.1 meters. Its core functions include automatic straightening, automatic wire feeding and efficient welding, which can meet the processing requirements of different specifications of wire meshes.

Welded Wire Mesh Machine Advantages

The electric welding net machine has the core advantage of fully automated operation, achieving efficient production through integrated design. Its features include:

1. Low noise operation: Adopting an optimized mechanical structure to reduce noise pollution during the operation process.

2. High stability: The equipment is equipped with a reinforced frame to ensure stability for long-term continuous operation, suitable for welding 1 inch, 2inches,4 inches.

3. Easy operation: It has the characteristics of being easy to operate.

4. Both line wire and cross wires are fully automatic wire feeding through the wire reel.
5. The mesh roll length can be set by the control panel.
6. We can set the output on the counter, and the machine will stop automatically after production.
7. We can easily adjust the welding current when we need to weld different wire diameters.
8. Machinery can be equipped with flat mesh system if you need to produce flat wire mesh.
9. You can produce two rolled wire mesh at the same time, just adjust the cutter position.

Welded Wire Mesh Machine Features

1. The welding electrode is different from ordinary copper. It uses high chromium copper alloy, which can significantly increase the service life of the electrode.

2. The side cutters can be adjusted to make mesh rolls at same time. The machine has 2 cutters in the side of the machine which to make roll mesh at same time.

3. The welding time and welding current can be adjusted on the control panel to adjust the welding degree.

4. The welding transformers have 8 degrees and can be adjusted for different wire diameters.For example, need to adjust voltage regulation to level six, inserted the handle as shown below:

5. The cross wire feeding system uses high-speed straightening drum to ensure low noise and stable temperature for long-term operation.

6. About electric parts. Welded wire mesh machine use Delixi brand breaker, Schneider brand electric parts.

7. About the motor and reducer

New type machine use Mengniu brand main motor & Guomao brand reducer, which are the best quality in China. The quality can be guaranteed.

8. The main machine is equipped with a control button, which can stop in time when the machine fails, so as to reduce the waste of wire mesh.

Welded Wire Mesh Machine Technical Parameters

Welded Wire Mesh Machine Applications

Welded wire mesh is a mesh product made by automatically and precisely welding high-quality low-carbon steel wires or stainless steel wires. It features strength and durability, as well as stable structure, and is widely used in fields such as construction, agriculture, industry and home furnishing.

1. The field of architecture
Wall reinforcement: The welded wire mesh is laid in the middle of the wall when constructing the wall, enhancing the integrity and stability, preventing cracks, and achieving remarkable effects especially in areas with high seismic requirements.
Wall reinforcement: The welded wire mesh is laid in the middle of the wall when constructing the wall, enhancing the integrity and stability, preventing cracks, and achieving remarkable effects especially in areas with high seismic requirements.
Ground protection: As an auxiliary material for reinforcing bars in the construction of concrete floor slabs, it disperses the ground load, prevents cracking, and extends the service life.

2. Agricultural field area
‌Fencing for Breeding‌: A fence used for poultry farming (such as chickens and ducks), to prevent escape and protect against wild animals. The mesh size can be selected according to the size of the animals.
‌Fruit Orchard Protection‌: To prevent birds from pecking at fruits and small animals from damaging fruit trees. It can also be used to build support structures such as grape trellises.
‌Industrial Field Area‌
Mechanical equipment protection: Install electric welding net guardrails in the factory to prevent personnel from coming into contact with dangerous areas and to isolate dust and debris.
Filter and screening: In the chemical and food industries, it is used as a filter screen. Select the appropriate mesh size according to production requirements.Ground protection: As an auxiliary material for reinforcing bars in the construction of concrete floor slabs, it disperses the ground load, prevents cracking, and extends the service life.

3. Agricultural field area
‌Fencing for Breeding‌: A fence used for poultry farming (such as chickens and ducks), to prevent escape and protect against wild animals. The mesh size can be selected according to the size of the animals.
‌Agricultural Protection‌: Prevents birds from pecking at fruits and small animals from damaging fruit trees. It can also be used to build support structures such as grape trellises.

‌4. Industrial Field‌
Mechanical equipment protection: Install electric welding net guardrails in the factory to prevent personnel from coming into contact with dangerous areas and to isolate dust and debris.
Filter and screening: In the chemical and food industries, it is used as a filter screen. Select the appropriate mesh size according to production requirements.

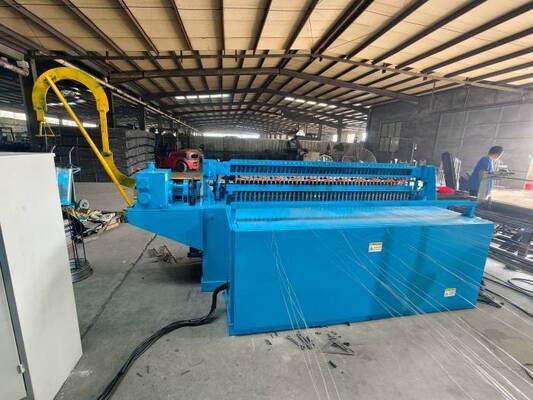

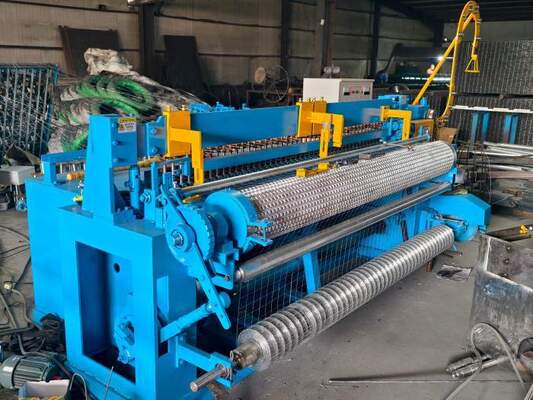

Photos of Welded Wire Mesh Machine
